Ping Pong¶

This tutorial will showcase the following topics:

Smart-contract deployment
Smart-contract queries
Smart-contract calls

The entire source code can be find in the MxOps github

Context¶

We will write MxOps scenes to deploy and interact with the ping-pong contract from the MultiversX tutorial.

Here is the plan:

Deploy the ping-pong contract
Ping some eGLD to the contract
Pong the eGLD back

Nothing fancy there, but this will teach you the strings of MxOps and you will get familiar with this tool 😄

Prerequisites¶

You will need to have the following installed:

Tutorial plan¶

Clone the ping-pong contract and build it
Setup your devnet wallet
Deploy the contract
Ping
Pong
Executions

To prepare for the tutorial, create a new folder

mkdir ping_pong_tutorial
cd ping_pong_tutorial

Smart Contract Build¶

To deploy the ping-pong smart-contract, we need it in wasm format. Let’s retrieve from Github the source code of the ping-pong contract and compile it:

git clone https://github.com/multiversx/mx-ping-pong-sc contract
sc-meta all build

Make sure that the last lines of the output are like this:

Packing ../output/ping-pong.mxsc.json ...
Contract size: 3799 bytes.  # size maybe a bit different depending on the version

The contract is now compiled and ready to be deployed! 📡

Owner Wallet¶

We will need a wallet to make our tests. The easiest is to use a pem wallet, as it doesn’t require a confirmation when signing transactions.

Create a folder for the mxops scenes and create a setup scene:

mkdir mxops_scenes
touch mxops_scenes/account_setup.yaml

In the scene mxops_scenes/account_setup.yaml, add the following:

steps:

  - type: GenerateWallets
    save_folder: ./wallets
    wallets:
        - owner

  - type: R3D4Faucet
    targets:
      - owner

This will create a pem wallet at wallets/owner.pem and ask the r3d4 faucet for some initial funds. You can execute this scene on devnet with the command below:

mxops execute -n devnet -s ping_pong_tutorial mxops_scenes/account_setup.yaml

Note

The r3d4 faucet is heavily used, so it may be empty when you try to claim some EGLD. In this situation, MxOps will give you the following error: mxops.errors.FaucetFailed: Balance is too low. Try again later

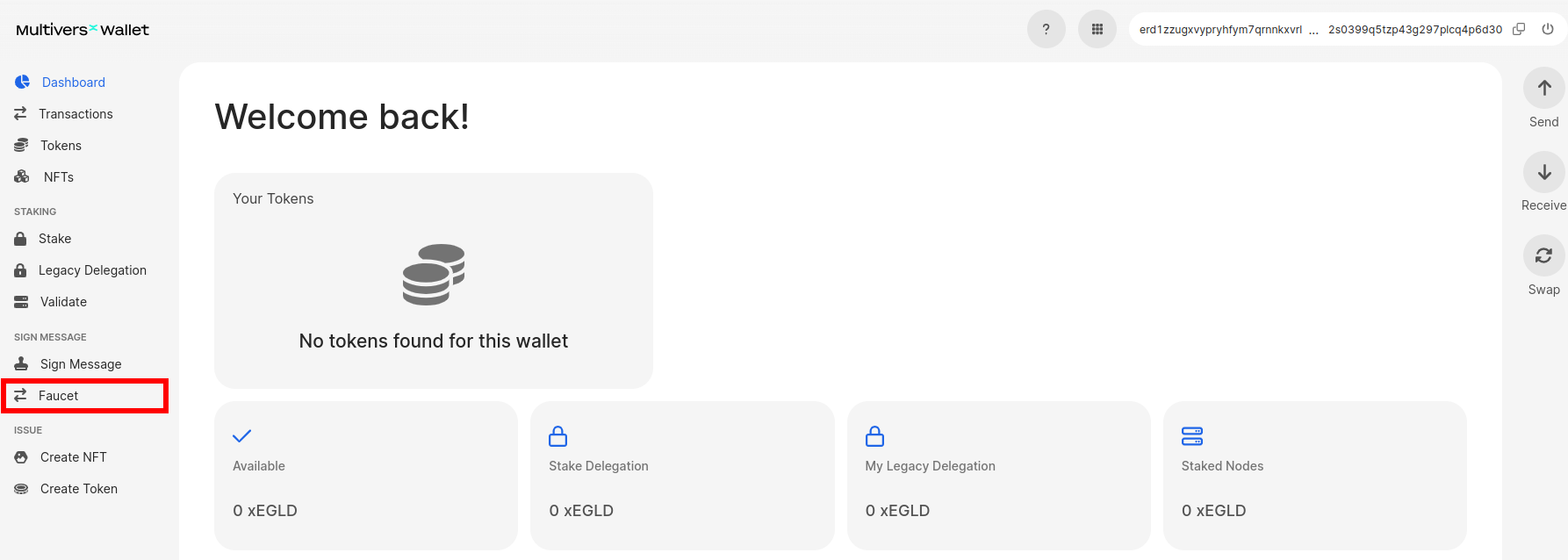

The funds should arrive under a minute but if there is any error, you can manually ask for some funds on the regular faucet on the devnet wallet

Warning

The secret key of the wallet is written in clear in a pem file! It is very useful for tests but unless you know what you are doing, don’t use pem files for mainnet.

Deployment¶

Everything is in place for us to deploy our ping-pong contract so let’s get to work ⚒️👷‍♂️

To deploy our contract, we will use a ContractDeploy step while specifying several elements: the path of the wasm file, the wallet that will deploy the contract, the code metadata and lastly the arguments for the initialization of our contract.

The init function of the ping-pong contract take three arguments:

#[init]
fn init(
    &self,
    ping_amount: BigUint,
    duration_in_seconds: u64,
    opt_token_id: OptionalValue<EgldOrEsdtTokenIdentifier>,
)

We don’t want yet to specify the ping amount or the wait time between the ping and the pong transactions. So we will use environment variables (PING_PONG_AMOUNT and PONG_WAIT_TIME), which will allow us specify it at deployment time.

To be able to interact with the deployed contract later on in the scene, we need give the newly deployed contract an id. We will choose egld-ping-pong for our tutorial.

Create the file mxops_scenes\01_deploy.yaml and write the content below

steps:

  - type: ContractDeploy
    sender: owner
    wasm_path: "./contract/ping-pong/output/ping-pong.wasm"
    abi_path: "./contract/ping-pong/output/ping-pong.abi.json"
    contract_id: "egld-ping-pong"
    gas_limit: 40000000
    arguments:
      - "$PING_PONG_AMOUNT"
      - "$PONG_WAIT_TIME"
      - null
    upgradeable: true
    readable: false
    payable: false
    payable_by_sc: true

We provide a null value for the optional token identifier, this will make the contract select EGLD by default.

Note

To tell MxOps that PING_PONG_AMOUNT and PONG_WAIT_TIME are environment variables, we use the $ symbol. Find more about this in the smart-values chapter.

Ping¶

Let’s say we want to ping our contract, but we don’t remember what was the ping amount to send. So what we will do is first ask the contract for the amount of EGLD we are supposed to send and then send the ping transaction with the correct amount.

Create a new scene, which we will call mxops_scenes\02_ping.yaml:

steps:

  - type: ContractQuery
    contract: "egld-ping-pong"
    endpoint: getPingAmount
    results_save_keys:
      - PingAmount

  - type: ContractCall
    sender: owner
    contract: "egld-ping-pong"
    endpoint: ping
    gas_limit: 3000000
    value: "%egld-ping-pong.PingAmount"
    checks:
      - type: Success

      - type: Transfers
        condition: exact
        expected_transfers:
          - sender: "%owner.address"
            receiver: "%egld-ping-pong.address"
            identifier: EGLD
            amount: "%egld-ping-pong.PingAmount"

Some explanations:

The first step tells MxOps to make a query to our contract, retrieve the ping amount and save it under the key egld-ping-pong.PingAmount
The second step tells MxOps to execute the ping transaction while sending the current amount of EGLD, this amount is referenced using the smart-values system of MxOps: %egld-ping-pong.PingAmount
Lastly, to make sure that everything went alright, we will ask to MxOps to check two things: first that the transaction is a success (which he does by default) and second that the transaction contains exactly the expected transfer of EGLD from us to the ping pong contract

Pong¶

As we set a wait time of 1 second and a block confirmation time is more than that, we can call the “pong” endpoint immediately after the ping confirmation. Indeed by default, MxOps wait for each transaction to be confirmed before sending the next one. As MultiversX block are 6 seconds long, the wait period for the pong action will be over.

Create the scene mxops_scenes/03_pong.yaml and add the content that is very similar to the ping scene:

steps:

  - type: ContractCall
    sender: owner
    contract: "egld-ping-pong"
    endpoint: pong
    gas_limit: 3000000
    checks:
      - type: Success

      - type: Transfers
        condition: exact
        expected_transfers:
          - sender: "%egld-ping-pong.address"
            receiver: "%owner.address"
            identifier: EGLD
            amount: "%egld-ping-pong.PingAmount"

Here, we will check that the contract indeed send us back the correct amount of EGLD.

Executions¶

The only thing left to do for us is now to tell MxOps to execute our three scenes: deploy, ping and pong. As we named our scene with numbers (01, 02 and 03), they are already in the correct execution order. So we will just provide to MxOps the folder of the scenes:

export PING_PONG_AMOUNT=100000000000000000  # 0.1 EGLD
export PONG_WAIT_TIME=1  # 1 seconds
mxops execute -n devnet -s ping_pong_tutorial mxops_scenes

You should now see MxOps slowly executing the steps, one after the other. It will also give you the explorer links of the transactions so you can inspect the results in more details if you want to.

If you want you can ping again the contract:

mxops execute -n devnet -s ping_pong_tutorial mxops_scenes/02_ping.yaml

and pong it when you feel like it:

mxops execute -n devnet -s ping_pong_tutorial mxops_scenes/03_pong.yaml

Data¶

If you want to look at the data saved by MxOps in the ping_pong_tutorial scenario, enter the command below:

mxops data get -n devnet -s ping_pong_tutorial

🏆 Conclusion¶

Congratulation, you learned how to deploy and interact with a smart-contract! You even setup some small checks to make sure that the contract was behaving correctly 😄

This will surely come handy for you project! Do not hesitate to give us your feedback on this tutorial 🙌
